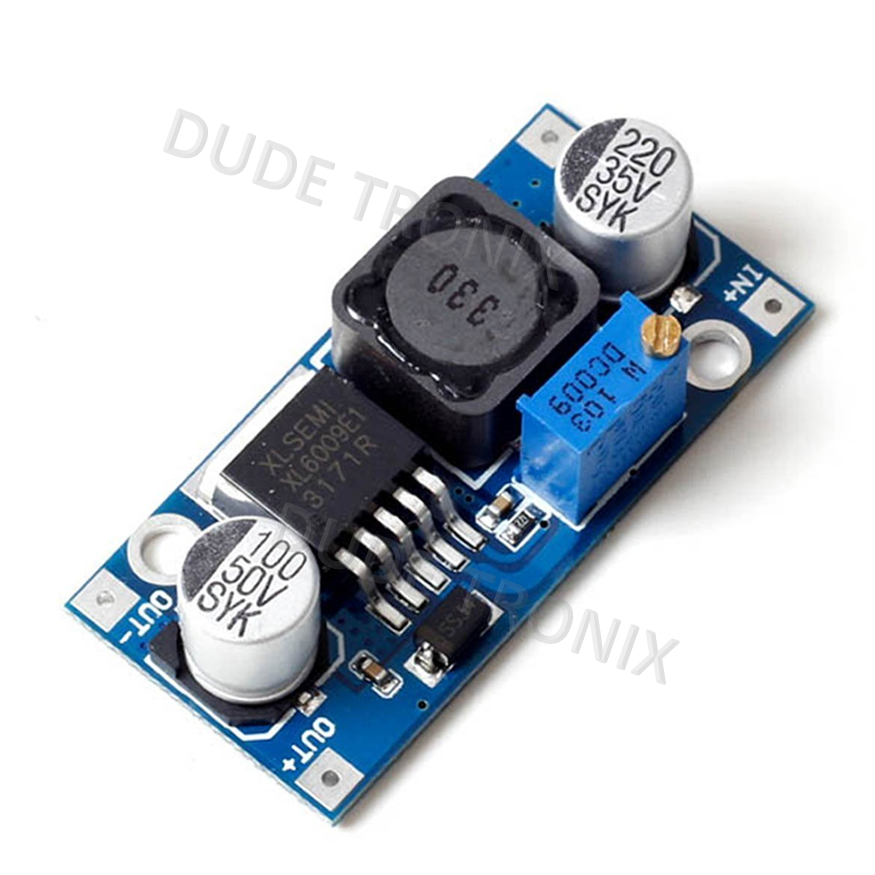

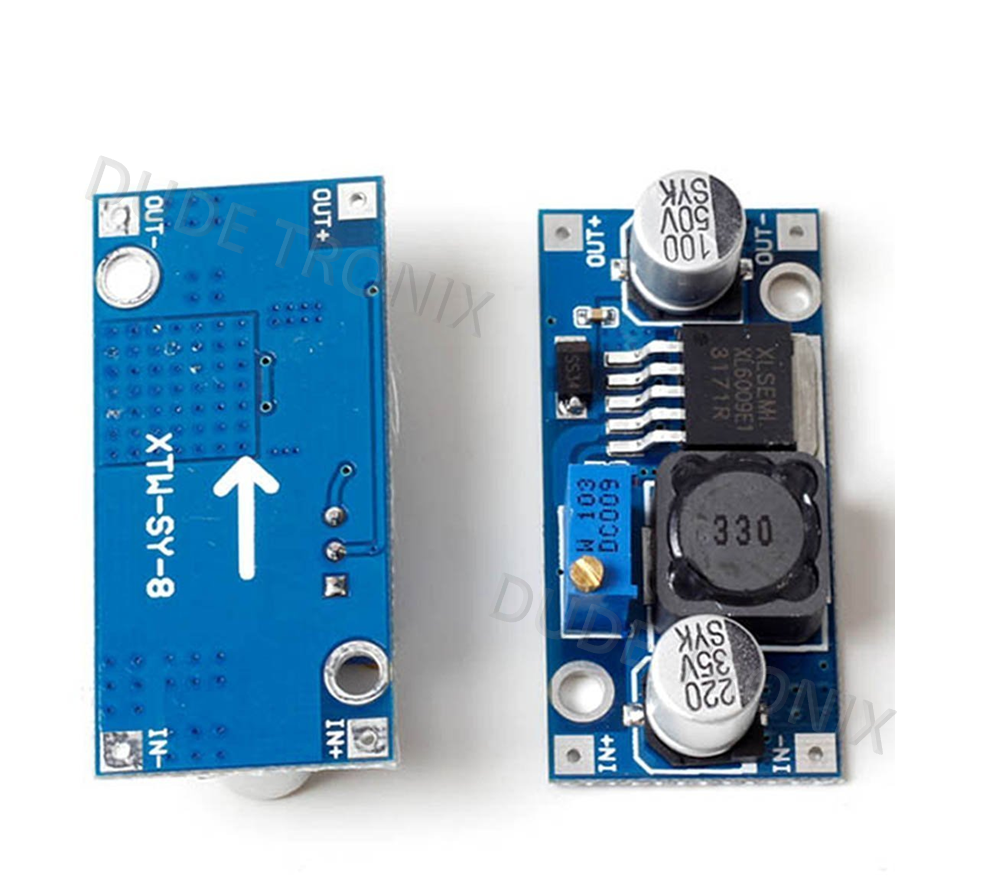

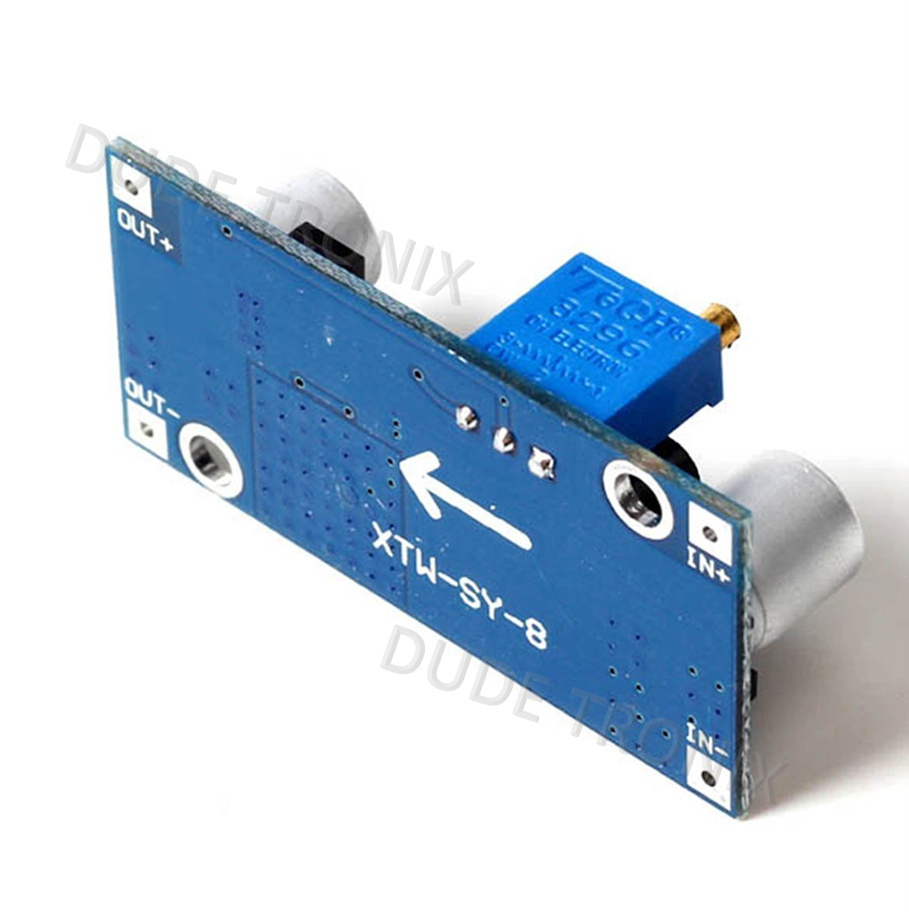

XL6009 Buck Boost Conveter

SKU: DT- CVR001

A high-efficiency XL6009 Buck-Boost Converter designed for stepping up or stepping down voltage levels in various electronic applications.

The XL6009 Buck-Boost Converter is a versatile DC-DC converter capable of both buck (step-down) and boost (step-up) operations, making it suitable for applications where input voltage may fluctuate above or below the desired output voltage. Featuring the XL6009 integrated circuit, this converter provides stable and adjustable output voltage from a range of input voltages. With high efficiency and reliable performance, it is ideal for power management in electronic projects, battery-powered devices, and various industrial applications. The module is equipped with adjustable output voltage and current capabilities, allowing for fine-tuning to meet specific requirements.

Buck and Boost Capabilities: Can step up or step down the input voltage, offering flexibility for various applications.

Wide Input Voltage Range: Supports a broad range of input voltages, typically from 5V to 32V.

Adjustable Output Voltage: Allows for precise setting of the desired output voltage.

High Efficiency: Designed to provide efficient power conversion with minimal loss.

Stable Performance: Delivers consistent and reliable output even with varying input conditions.

Compact Design: Easy to integrate into different electronic setups with a small footprint

Specifications:

Input Voltage Range: 5V to 32V
Output Voltage Range: Adjustable, typically 5V to 35V
Maximum Output Current: Depending on the module, typically up to 4A
Efficiency: Up to 94% (depending on load and input/output conditions)
Switching Frequency: Typically 400kHz

Conditions:

Ensure proper ventilation and heat dissipation during operation to maintain efficiency and prevent overheating.
Handle with care to avoid damage to the circuit board or components.
Connect the input and output with correct polarity to prevent damage.
Avoid exposing the module to excessive moisture or extreme temperatures.
Store in a dry, clean environment when not in use to maintain optimal performance.

We offer a 7-day return policy on this product. If you experience any issues or are not satisfied with your purchase, you may return it within 7 days for a full refund or replacement. Please ensure the product is returned in its original condition and packaging to be eligible for a refund.
